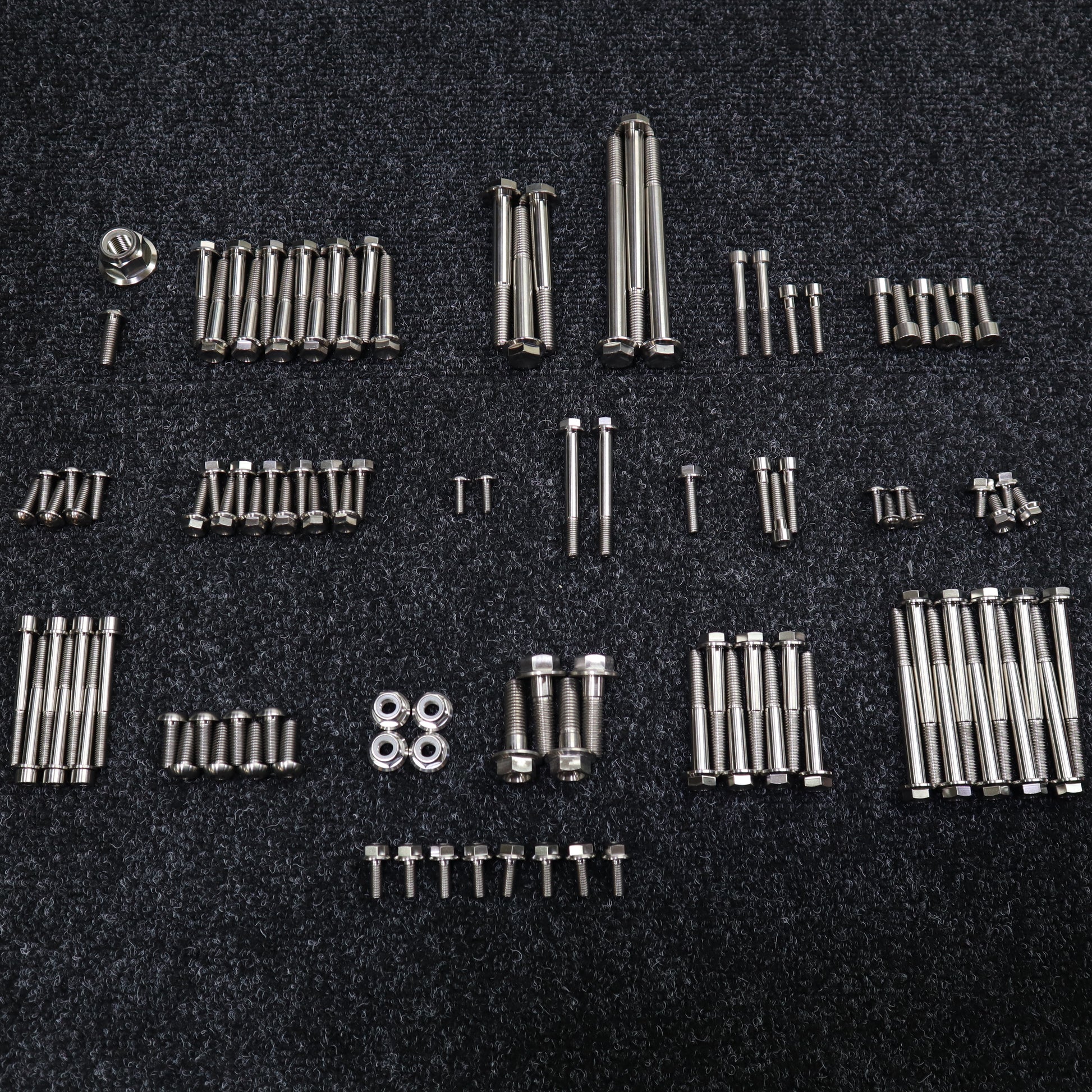

Ultimate Polaris Patriot Engine Titanium Bolt Kit (118pc)

Our Titanium Bolt kit is the most complete offering in the industry. After purchase, you will receive detailed images and information on bolt placement. Flywheel Puller is required to get access to stator bolts

Included:

9R & NA 850:

• Knock Sensor (1)
• Cylinder Head (12)
• Cylinder (3 Long/3 Short)
• Exhaust Valves (4)
• Y-pipe (6)
• Water Pump Cover (6)
• Throttle Body Boot (12)
• TPS (2)
• Fuel Rail (2)
• Wire Harness Bracket (1)
• Stator (3)
• Stator Sensors (4)
• Recoil Cup/Pulley (4)
• Recoil (7 + washers)
• Engine mount to cases (8)
• Engine Mount Studs (4 nyloc nuts)
• Engine Mount to bulkhead (3) *2025+ models require 4 bolts due to updates.
• Crankcase (7 Short)
• Crankcase (10 Long)
• Exhaust Valve Actuator/idler arm bracket (8)
• Flywheel Nut

118 PC TOTAL

Boost Models add ons:

Aux Fuel Rail

Wastegate Actuator

Upgrade your Matryx with our 118pc Engine Titanium Bolt Kit for lighter weight and superior strength. Our high-tensile bolts will not corrode and fatigue. View all our other Titanium Bolt Kits

Other bolt suppliers reduce head and flange sizes simply to save cost.
Our bolts have proper head and flange size to reduce any hole distortion
or striped head. This may add a gram or 2 but worth it!

INSTRUCTIONS
Thread lock is required on all fasteners. Titanium is an inactive metal so we highly recommend using a thread lock primer. Our recommended brand is Loctite SF7649 primer with Loctite 262 or 242 thread lock.

TORQUE SPECS
M6 8Nm 6FT Lb.
M8 20Nm 15FT Lb.
M10 40Nm 30FT Lb.

*Loctite SF 7649 Primer Recommended for all Titanium or Anodized fasteners
