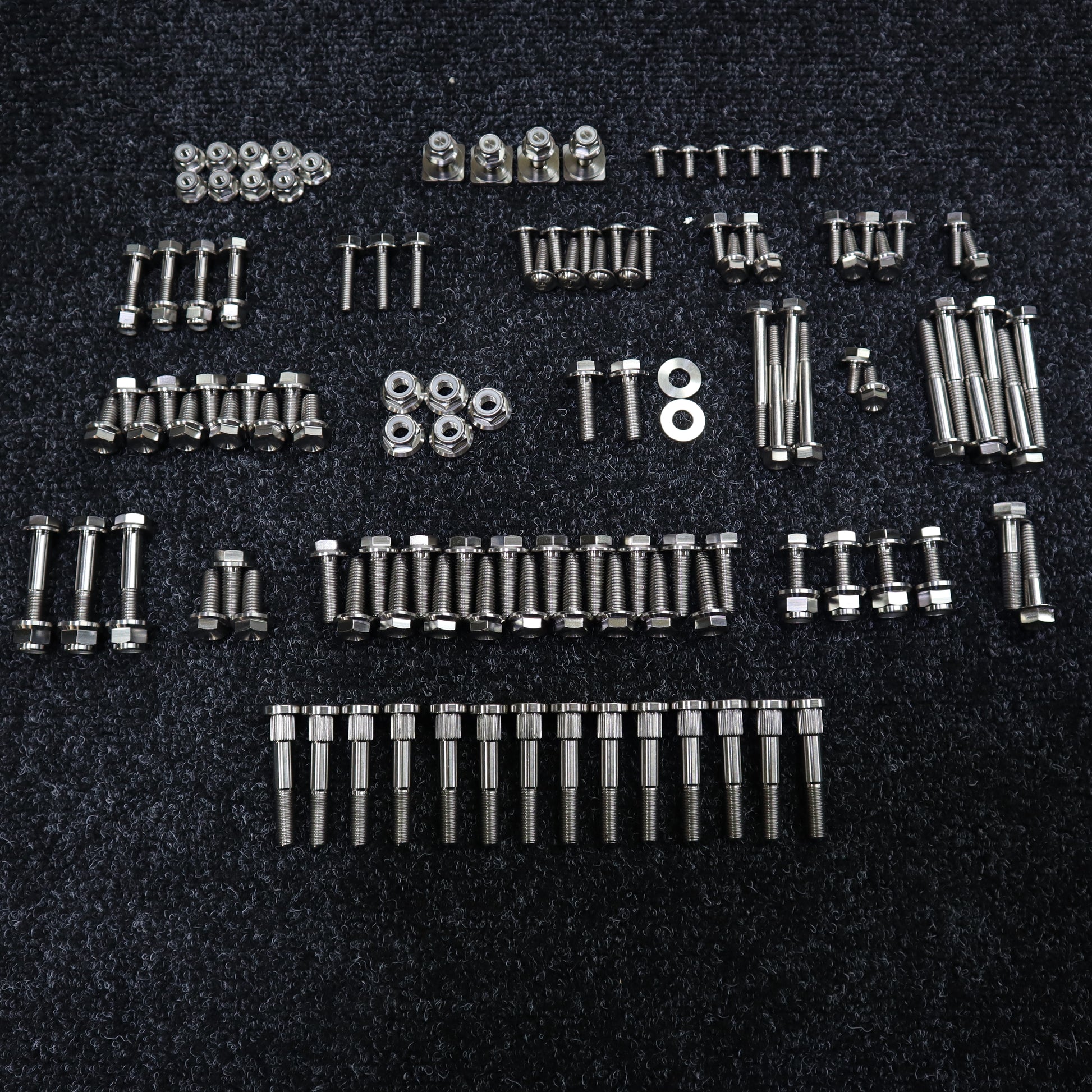

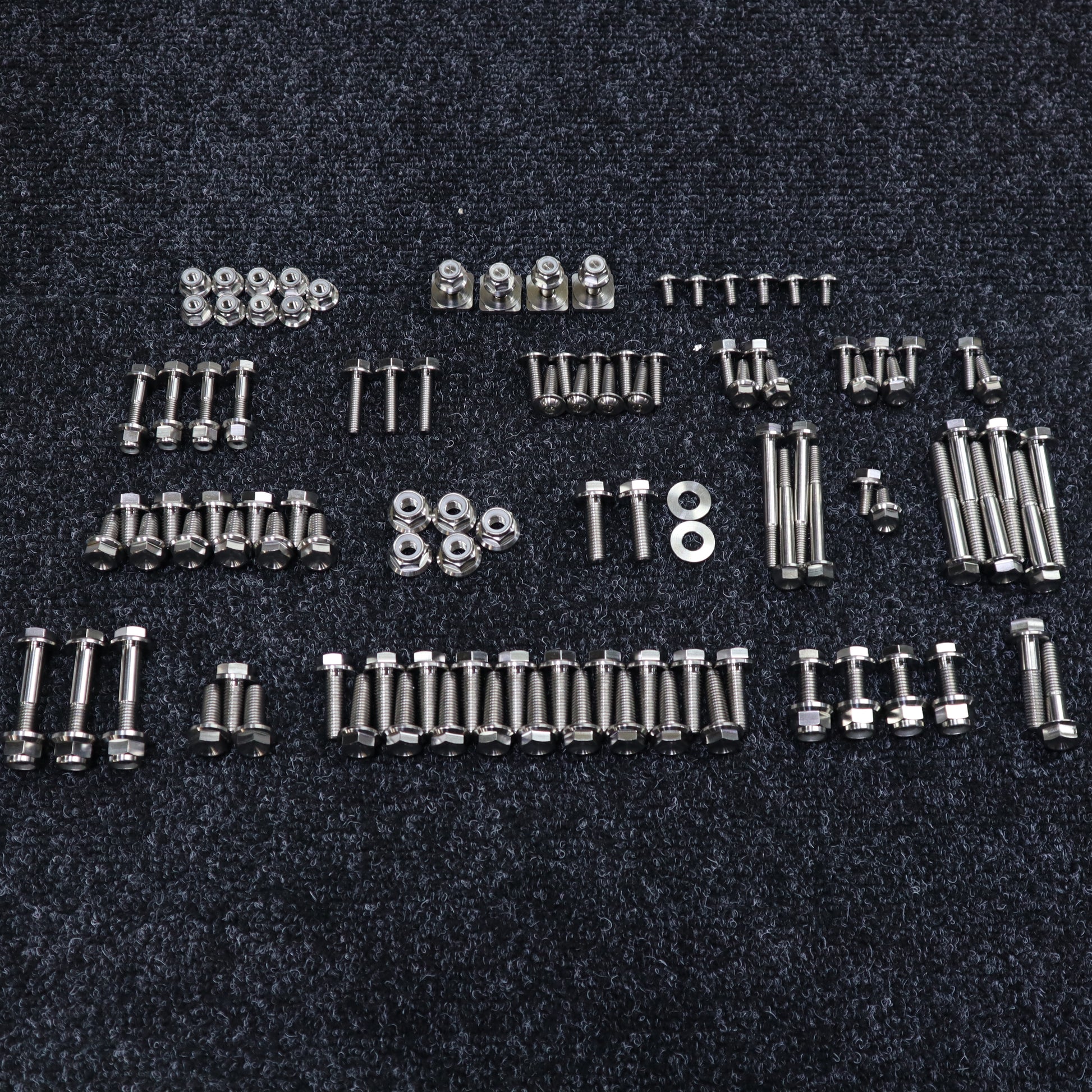

Ultimate Polaris Matryx Chassis Titanium Bolt Kit (141pc)

6AI-4V Grade 5 Titanium Chassis Bolt Kit for Matryx

Our Titanium Bolt kit is the most complete offering in the industry. After purchase, you will receive detailed images and information on bolt placement.

Kit comes with 4 (x2 short/x2 long) Carriage bolts/ accessory studs. If you require more: Click Here

Weight savings: 689 Grams

Included:

BULKHEAD/FOOTWELL/CAN BRACKET
BULKHEAD/HALFS/OTHER/CAN BRACKET
SUBFRAME
BULKHEAD HALFS
BULKHEAD BRACKETS
BULKHEAD HALFS/ A-ARM FRONT
BULKHEAD HALFS/ A-ARM FRONT
JACKSHAFT/DRIVE/ BULKHEAD FRONT
STEERING POST BLOCKS
REGULATOR/UPPER A-FRAME
REGULATOR/UPPER A-FRAME
ECU(2) FUEL TANK (1)
FRONT BUMPER
FRONT BUMPER
PANEL / CONSOLE
PANEL / CONSOLE
GAS TANK/RUNNING BOARD/ACCESSORIES BRACKET
GAS TANK/RUNNING BOARD/ACCESSORIES BRACKET
TIE ROD BOOT
CHASSIS TO A-ARM SPLINED STUD
ACC/ STUD SQUARE
GAS TANK STUD SQUARE
PANEL / CONSOLE /TIE ROD BOOT

141 PC TOTAL

Upgrade your Matryx with our 141pc Chassis Titanium Bolt Kit for lighter weight and superior strength. Our high-tensile bolts will not corrode and less prone to wear. Experience the benefits of titanium while maintaining a sleek and functional chassis.

These bolts with a combination of forming and machining, these fasteners deliver superior strength and precision to meet our high standards.

Other bolt suppliers reduce head and flange sizes simply to save cost.
Our bolts have proper head and flange size to reduce any hole distortion
or striped head. This may add a gram or 2 but worth it!

INSTRUCTIONS
Thread lock is required on all fasteners. Titanium is an inactive metal so we highly
recommend using a thread lock primer. Our recommended brand is Loctite SF7649 primer with Loctite 262 or 242 thread lock.

TORQUE SPECS
M6 8Nm 6FT Lb.
M8 20Nm 15FT Lb.
M10 40Nm 30FT Lb.

*Loctite SF 7649 Primer Recommended for all Titanium or Anodized fasteners
