Ultimate Polaris Gripper Ski Titanium Bolt Kit

6AI-4V Grade 5 Titanium Gripper Ski Bolt Kit for Matryx / Axys Chassis

Our Titanium Bolt kit is the most complete offering in the industry. After purchase, you will receive detailed images and information on bolt placement.

Weight Savings: 271 Grams

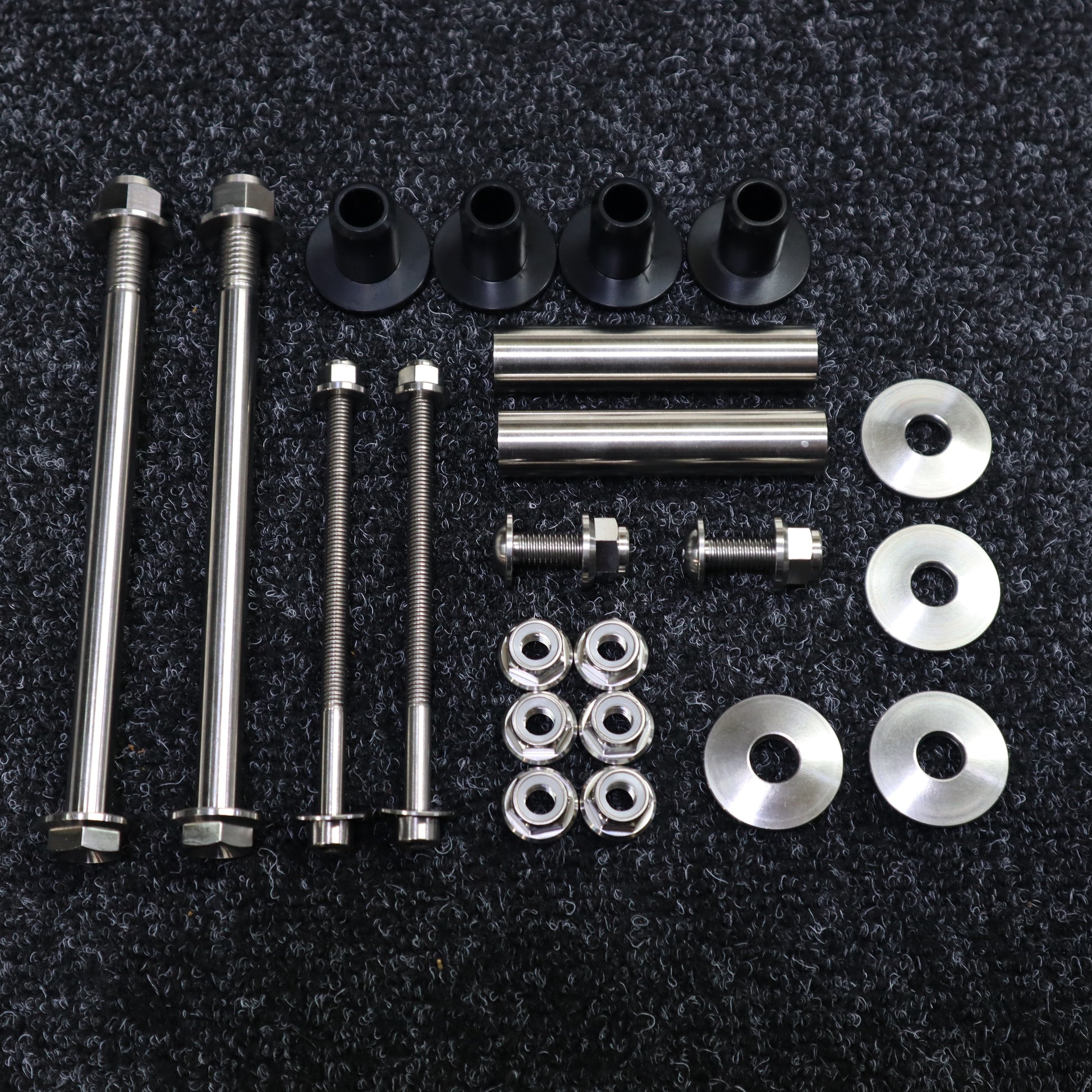

Included:

• Ski Bolt & Nylocs Nut (2)
• Domed Ski Bolt Washers (4)
• Ski Bolt Collar (x)
• Aluminum Ski Bushing Insert (x4)
• Ski Hoop Lower Bolt, Washer & Nylocs(x2)
• Ski Hoop Upper Bolt & Nylocs  (x2)
• Carbide/Skag/ Wear Bar Nylocs (x6)

32 PC TOTAL

Upgrade all your Gripper Ski's Hardware with our Gripper Ski Titanium Bolt Kit for lighter weight and superior strength. Our high-tensile bolts will not corrode and less prone to wear. Experience the benefits of titanium while maintaining a sleek and functional chassis.

Other bolt suppliers reduce head and flange sizes simply to save cost.
Our bolts have proper head and flange size to reduce any hole distortion
or striped head. This may add a gram or 2 but worth it!

INSTRUCTIONS
Thread lock is required on all fasteners. Titanium is an inactive metal so we highly
recommend using a thread lock primer. Our recommended brand is Loctite SF7649 primer with Loctite 262 or 242 thread lock.

TORQUE SPECS
M6 8Nm 6FT Lb.
M8 20Nm 15FT Lb.
M10 40Nm 30FT Lb.

*Loctite SF 7649 Primer Recommended for all Titanium or Anodized fasteners
