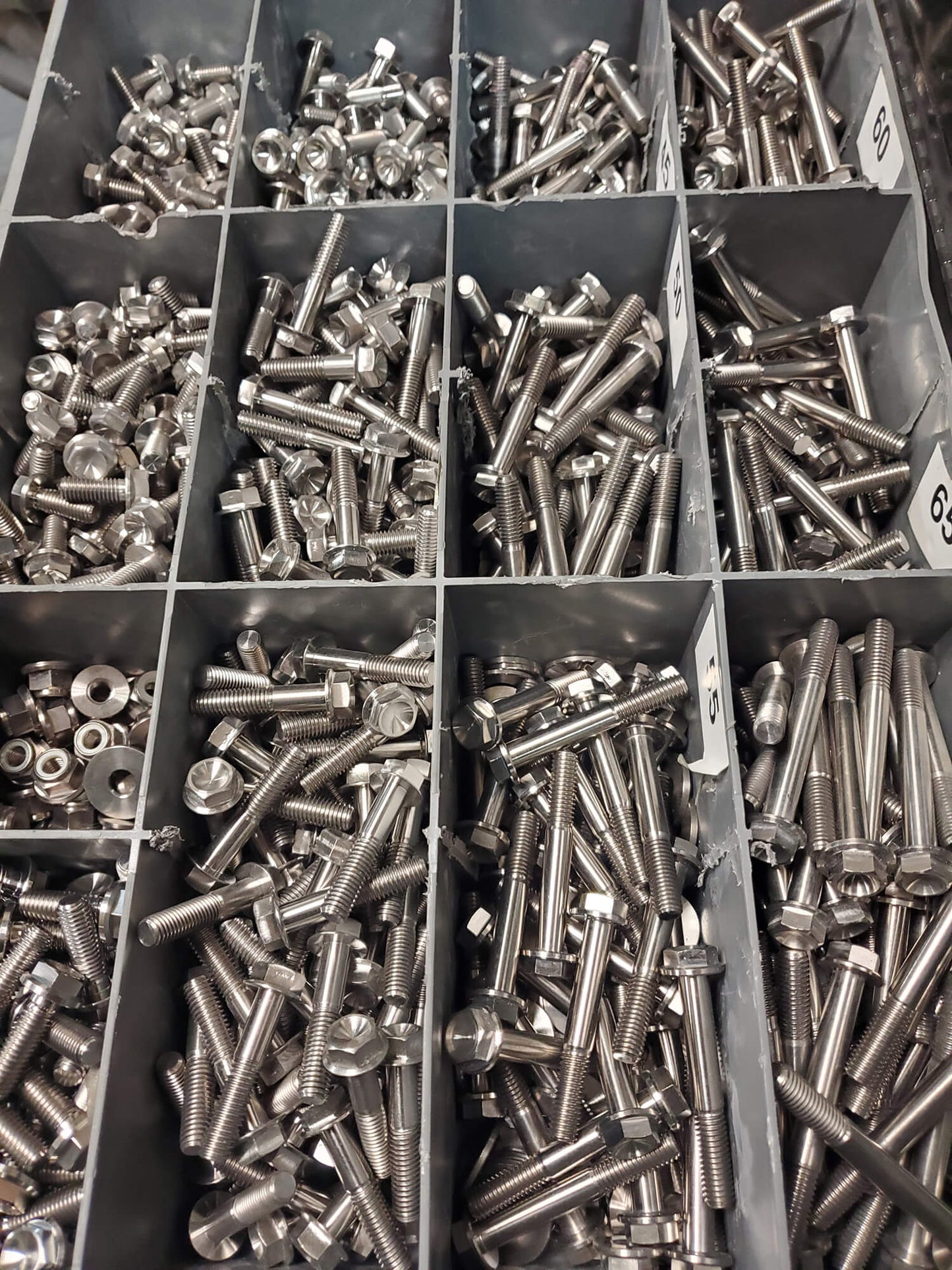

Titanium 6Al-4V Grade 5 Hardware

Half the weight of steel fasteners with corrosion free good looks.

These fasteners are manufactured with a mix of forming and machining
providing the top strength and tolerance control that Carbonsled demands.

Other bolt suppliers reduce head and flange sizes simply to save cost.
Carbonsled bolts have proper head and flange size to reduce any hole distortion
or striped head. This may add a gram or 2 but worth it!

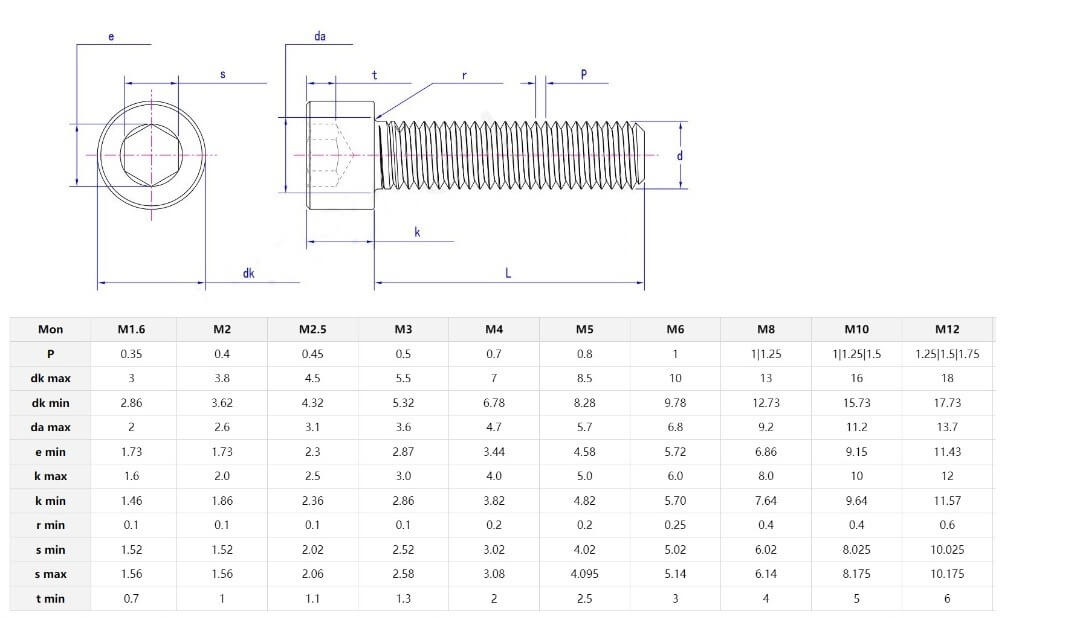

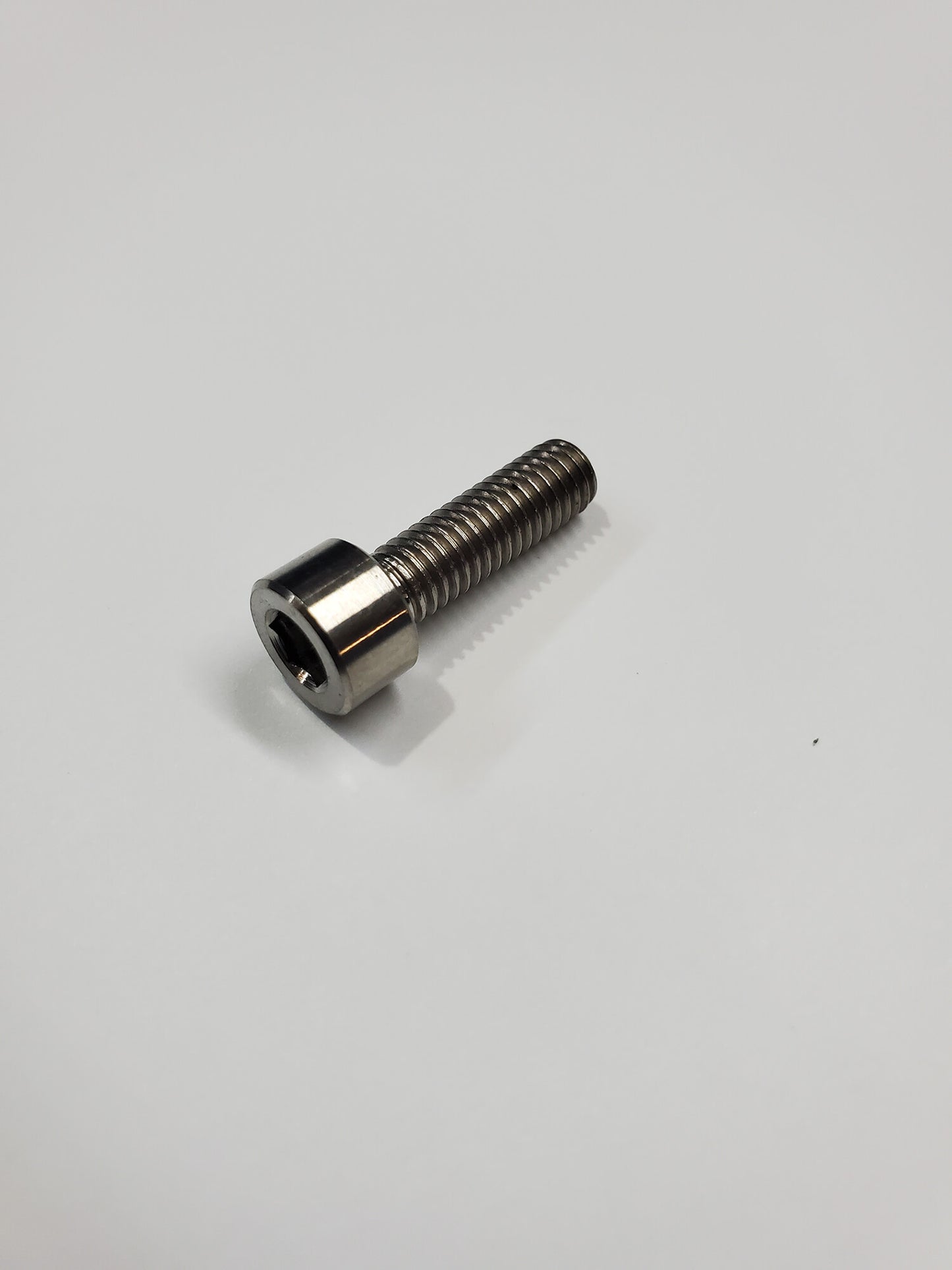

For tight clearance most fasteners are available in socket cap. (Allen head)
Bulk pricing or custom sizes available with minimum qtys.

INSTRUCTIONS/torque specs:
Thread lock is required on all fasteners. Titanium is an inactive metal so we highly
recommend using a thread lock primer. Our recommended brand is Loctite SF7649 primer with Loctite 262 or 242 threadlock.

TORQUE SPECS
M6 8Nm 6FT Lb.
M8 20Nm 15FT Lb.
M10 40Nm 30FT Lb.

Grade 5 titanium bolts are a great replacement for 95% of steel bolts in your machine.
Some aplications require the use of Grade 8 or 12 steel bolts.
Titanium should not be used as an upgrade of strength or in safety related components.
